Product Overview

Experience the convenience of one USB Type-C common docking solution that provides power, data and video to your notebook, tablet, or workstation.

Imagine one device that supports cross platform docking with Dell and non-Dell devices. The Dell WD15 Business Dock with 180W Adapter provides single cable connectivity in a slim form factor to simplify your workspace without compromising video performance.

Connect easily to dual FHD displays, with the ability to mount the dock to your desk or behind a display with the Dell WD15 Business Dock with 180W Adapter Mounting Kit. Used in conferences rooms, this device makes it easy to collaborate and share ideas and presentations through a connected display or projector. Easily connect a mouse, keyboard and other essential devices through the Dell Dock’s various ports.

Performance and Support

Dual Monitor Setup: Supports dual displays, but cannot use one digital and one analog (VGA) signal simultaneously; use HDMI and Mini DisplayPort together.
Maintenance: Firmware updates are crucial to prevent issues like flickering and USB disconnection.
System Power: Devices requiring more than 130W (like some Precision workstations) may require their own power adapter.

General Specifications

Standard: USB Type-C

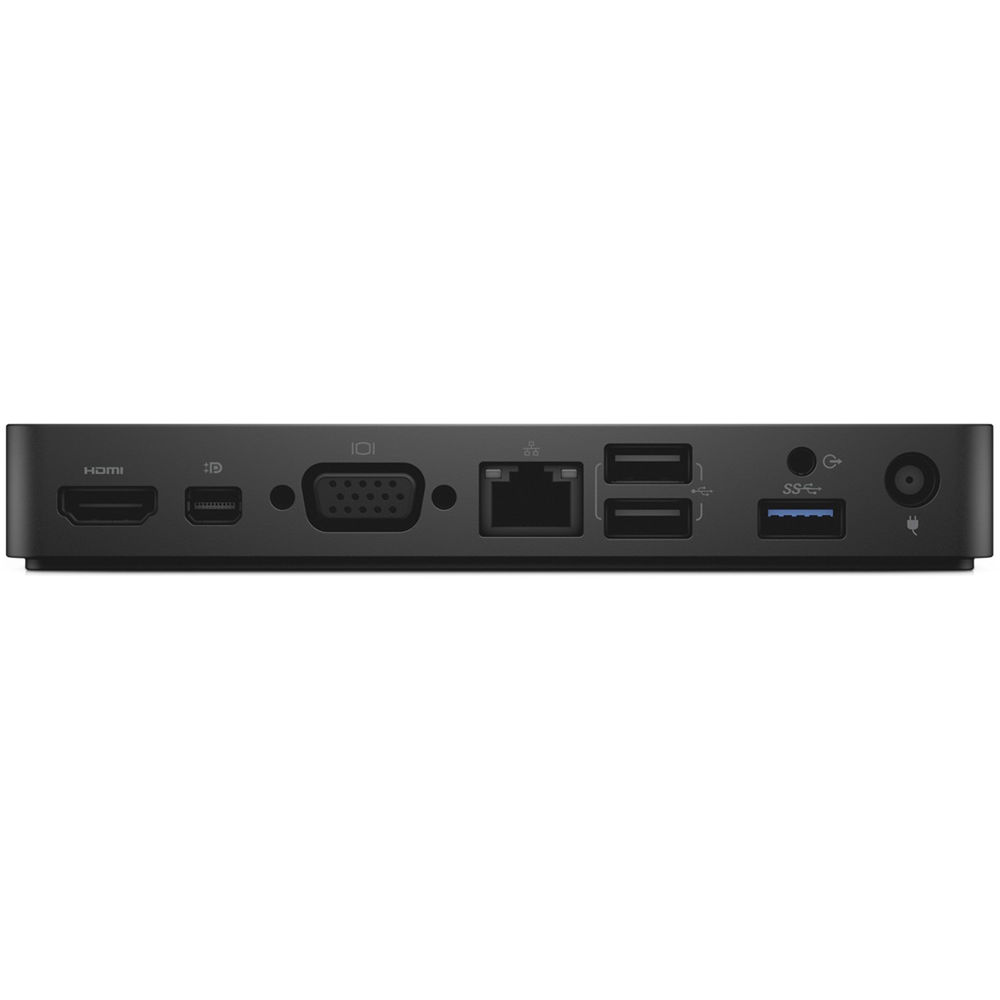

Video Ports: 1x mini-DisplayPort (supports DP 1.2) | 1x HDMI (supports HDMI 1.4a) | 1x VGA Port
Display Resolution: Up to 10.8 G of DisplayPort bandwidth (x2 DP lanes) | mDP or HDMI: 4K x 2K @ 30 Hz | VGA: 1920 x 1200 @ 60 Hz | 2x FHD or WUXGA (1920 x 1080 @ 60 Hz)(1920 x 1200 @ 60 Hz) | 3x SXGA (1280 x 1024 @ 60 Hz)
IO Ports: 1x Headset connector | 1x Speaker out
Network Port: 1x Gigabit Ethernet (RJ-45)
USB Ports: 2x Front USB 3.0 Ports (one with Power Share) | 1x Rear USB 3.0 Port | 2x Rear USB 2.0 Ports
DC-in Port: 1x 7.4 mm DC-in port
USB Type-C cable length: 0.8 m
Buttons: Sleep/Wakeup | Reset
LEDs: Front status indicator: Connected Mode – White | Firmware Upgrade: White
AC Adapter: 130W/180W
